Aluminium Curbing

Product Categories: Athletics - Track & Field Equipment

Product Tags: aluminium, competition, curbing, malaysia, sportex, sports equipment, training

Product Page: https://sportex.my/index/product/aluminium-curbing/

Product Summary

Curbing Socket (Order No SP11320)

The curbing socket is made from aluminium. It is sized to match the curbing bolt. The socket is inserted in the ground to receive the curbing bolt.

Curbing Bolt (Order No SP11330)

The curbing bolt is made from stainless steel. The curbing bolt is installed at the curbing holder drilled and is fixed inside the curbing socket.

Curbing Holder Drilled (Order No SP11310)

The curbing holder drilled is made from a special anodized aluminium profile. This holder fixes the curbing in the ground. It is fixed via the curbing bolt. The curbing holder drilled measures a total length of 60 mm.

Curbing Holder Non Drilled (Order No SP11300)

The curbing holder non drilled is made from a special anodized aluminium profile. This holder supports the curbing to stay in place correctly. The curbing holder non drilled measures a total length of 60 mm.

Curbing Connector (Order No SP11290)

The curbing connector is made from a special anodized aluminium profile. The part connects two curbing parts which each other. It also supports the curbing parts at their ends for more stability. The curbing connector measures a total length of 120 mm.

Curbing Cover (Order No SP11280)

The curbing cover is made from a special anodized aluminium profile. The part covers the join between two curbing parts.

Product Description

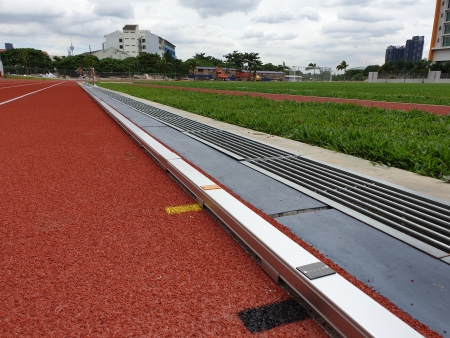

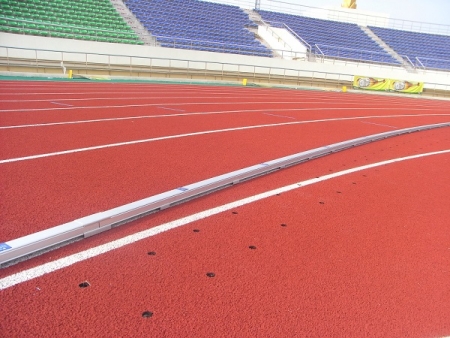

The aluminium curbing is made from special made anodized aluminium profiles. It is a mobile marker and separator of the running track. The set measures a total length of 400 m. The curbing is 60 mm wide and 50 mm
high.

A standard set consists of :
34 pcs Straight (5 m)
46 pcs Curved radius 36.5 m (5 m)
90 pcs Base cover 120 mm
90 pcs Top cover 120 mm
250 pcs Base cover with hole 60 mm
500 pcs Base cover without hole 60 mm
250 pcs Stainless steel pin 6 mm
250 pcs Socket for stainless steel pin made from aluminium
On request this is available in shorter cutting lengths or in different radii according to IAAF regulations.

Order no SP11260
