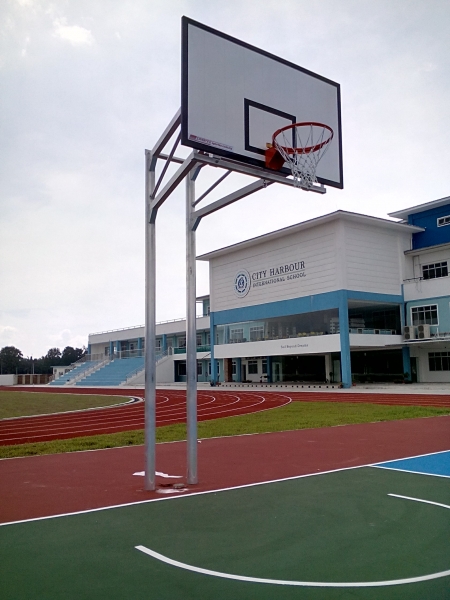

Basketball Double Post System

The basketball single post is made from special aluminium profiles. The structure is supported by two posts in the ground. The post measures a cross section of 120 x 100 mm. The wall thickness rises from four to six mm. The item also includes a backboard. The backboard measures 180×105 cm. There are three types of backboard available: aluminium, acrylic and tempered glass. The aluminium backboard is made from special aluminium profiles. The backboard is white powder coated. The acrylic backboard is made from see through 15 mm thick acrylic. The tempered glass is made from 12 mm thick glass panel. All corners are covered for safety reasons. The basketball single post is also equipped with a non-foldable basketball ring and net. The ring measures an inside diameter of 45 cm. The ring is galvanized and orange powder coated. The net is made from nylon and measures a thickness of 6 mm. The item is available in a fully welded version and in a dismantle version for export.

Order no SP100210 Projection: 0.9m; Backboard: Aluminium
Order no SP100211 Projection: 0.9m; Backboard: Tempered Glass
Order no SP100212 Projection: 0.9m; Backboard: Acrylic
Order no SP100220 Projection: 1.25m; Backboard: Aluminium
Order no SP100221 Projection: 1.25m; Backboard: Tempered Glass
Order no SP100222 Projection: 1.25m; Backboard: Acrylic
Order no SP100230 Projection: 1.65m; Backboard: Aluminium
Order no SP100231 Projection: 1.65m; Backboard: Tempered Glass
Order no SP100232 Projection: 1.65m; Backboard: Acrylic
Order no SP100240 Projection: 2.25m; Backboard: Aluminium
Order no SP100241 Projection: 2.25m; Backboard: Tempered Glass
Order no SP100242 Projection: 2.25m; Backboard: Acrylic

Standard Ground Socket

The standard ground socket for the basketball double post is made from aluminium. The socket is designed to match the oval profile 120×100 of the basketball post. The cover of this socket cannot be coated. It measures a total length of 550 mm. The insertion length is 500 mm. The ground socket is equipped with a compartment to store possible soiling without effecting the height of the post. The two sockets are welded together in the correct distance required to install the basketball double post.

Order No SP100490

Special Ground Socket

The special ground socket for the basketball single post is made from aluminium. The socket is designed to match the oval profile 120×100 of the basketball post. The cover of this socket can be coated with the surrounding material. It measures a total length of 550 mm. The insertion length is 500 mm. The ground socket is equipped with a compartment to store possible soiling without effecting the height of the post. The two sockets are welded together in the correct distance required to install the basketball double post.

Order No SP100500

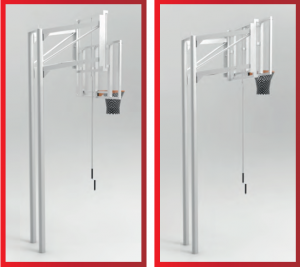

Height Adjustment System

The height adjustment system is made from aluminium. The structure is made from aluminium. The lead screw for the adjustment is made from stainless steel. The screw is supported by two round tubes to distribute the load evenly. The height can be adjusted from 2.5 to 3.05 m. It is adjusted with a crank, which is included in the delivery.

Order No SP100245

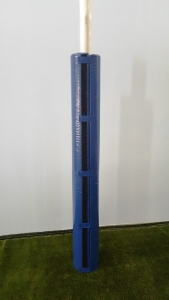

Basketball Padding Single Post

The basketball single post padding is made from a foam core and a PVC cover. The padding measures a height of 2.0 m and a thickness of 50 mm. The padding is designed in such a manner that matches the post. The PVC is weather resistant.

Order No SP100510
