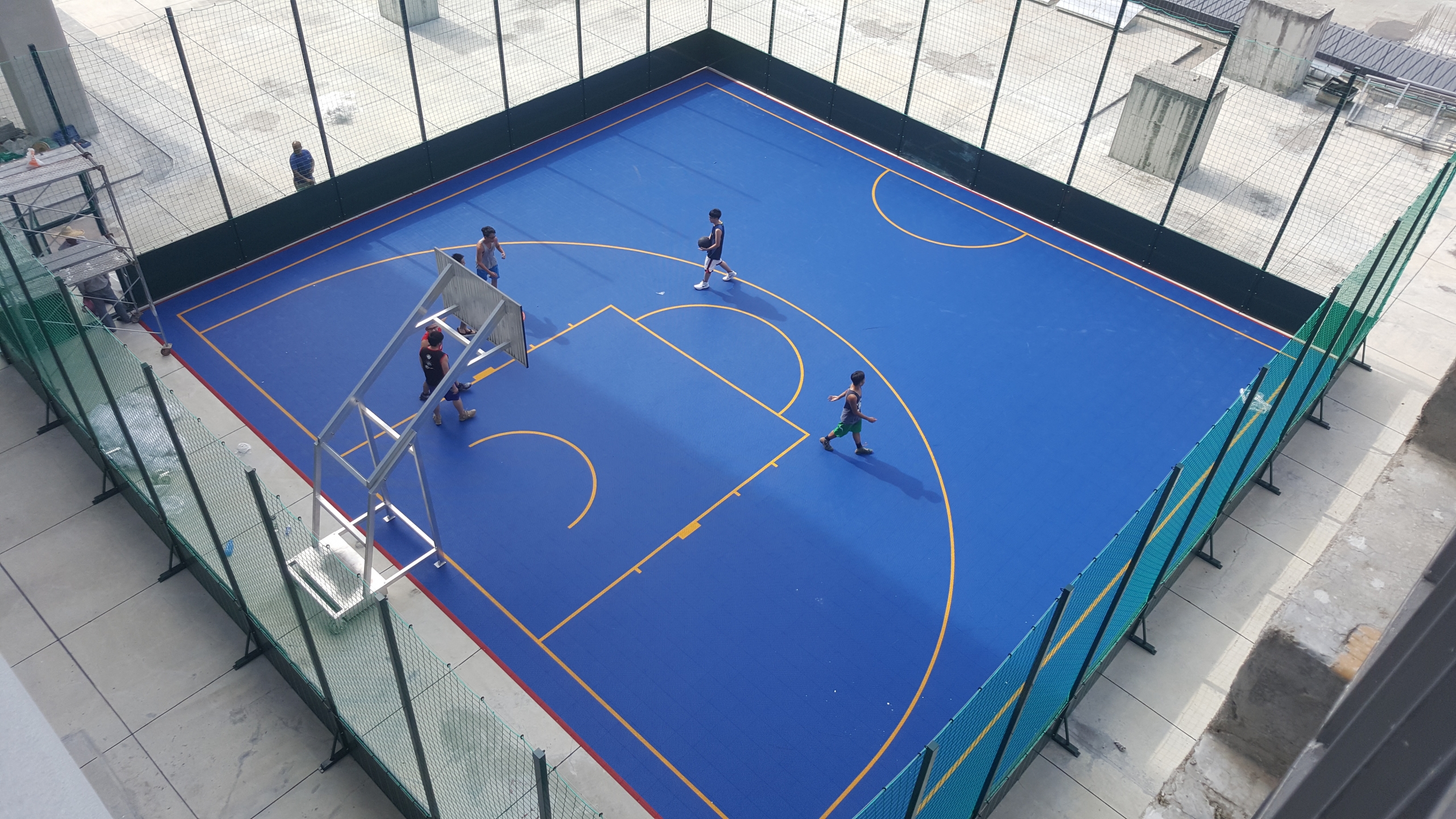

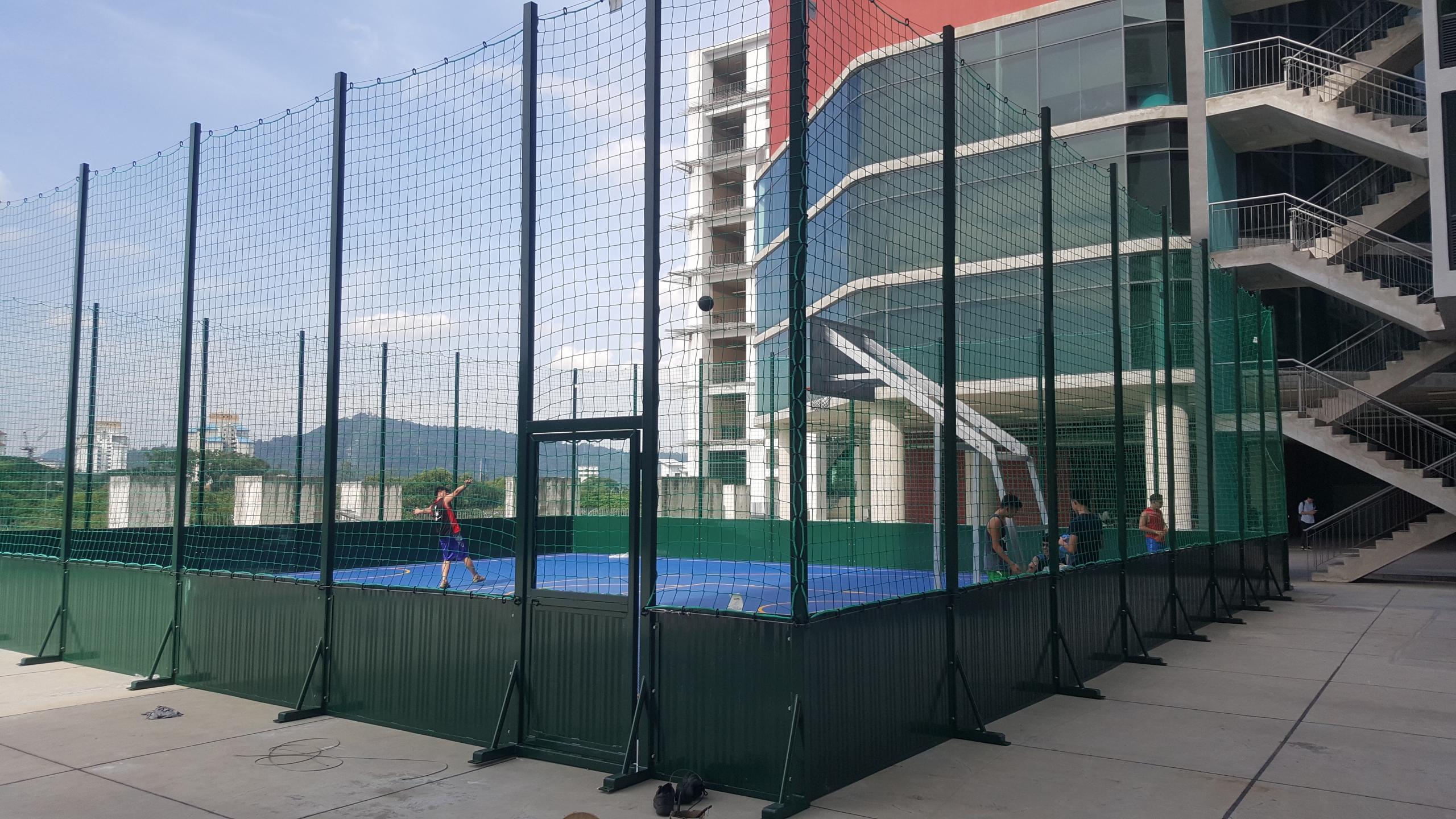

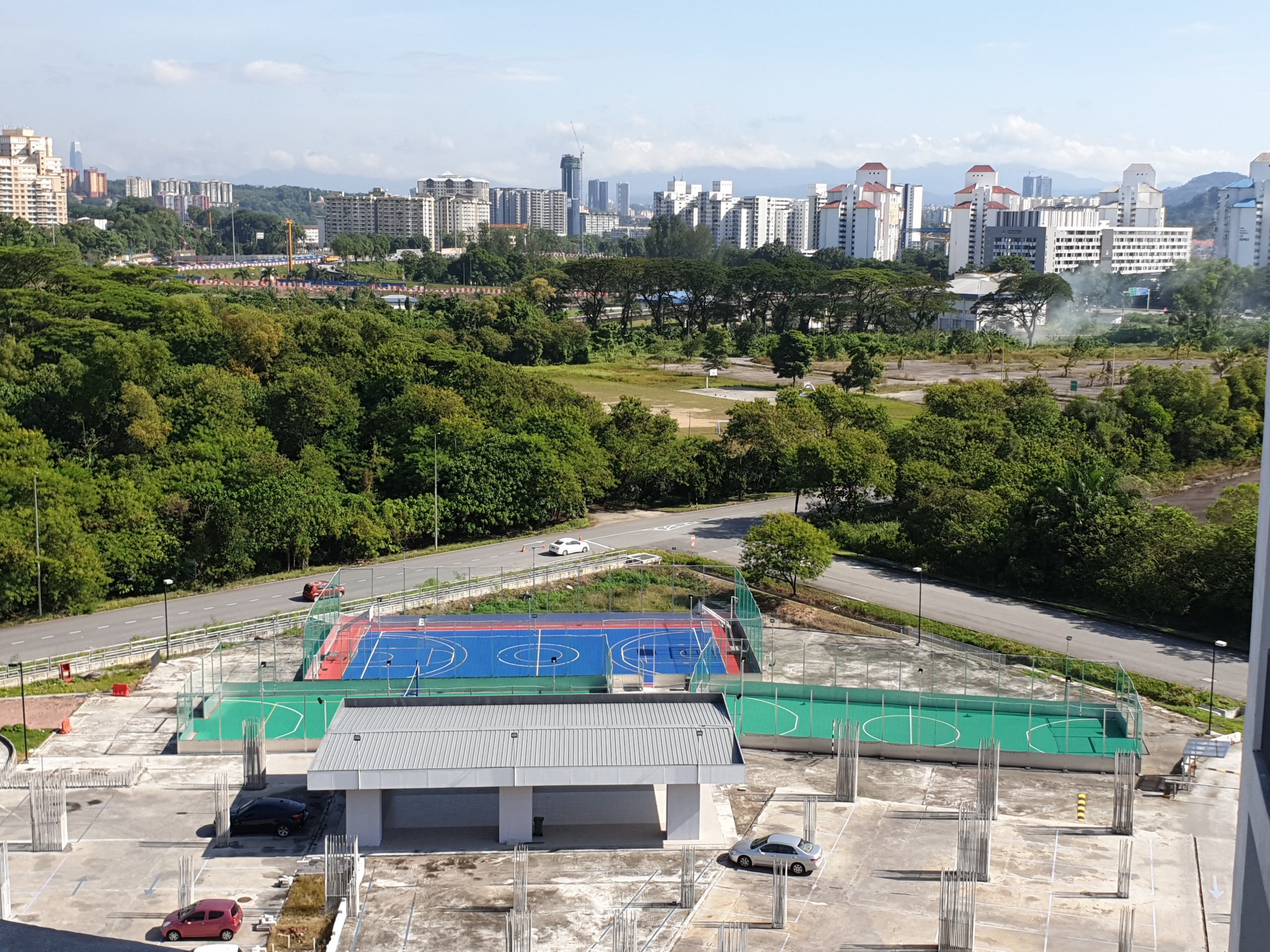

SPORTEX Multi Court

The multi play court is made from special aluminium profiles. The court measure a height of 3 m. The panels are made from a double walled panel profile. It measures a thickness of 2.3 mm. The panels are boarded with a U-profile, which as a radius of 2 mm. The panels are completely welded. They measure a height of 1 meter. The connection between panel and post is equipped with a rubber layer. The rubber layer reduces the
noise level. The freestanding version includes the counterweights (approx. 20 kg). For the ground socket version, the sockets are included. The door of the court measures a width of 1 m and a height of 2 m. The door is fully welded and opens outwards. The net is hung with stainless steel wires on top. The net is joined with the wire via nylon hooks. At the sides the INTERLOCK net hook system keeps it in place. The net is made from polypropylene (PP) and measures a thickness of 4 mm. The mesh width is 100 mm.

On request different equipment, such as volleyball equipment, basketball equipment, mini goals, tennis equipment or badminton equipment, can be fixed to the court. The court also can be done in powder coated finish.

Our integrated net hooks are used for the net suspension. In the standard version, the nets are made of polypropylene (PP), 4 mm thick, with a mesh size of 100 x 100 mm. The net is fixed on via rings welded on to the boards and on the upper parts of the upright posts. The net encloses the court completely up to a total height of 3 metres.

On request soccer court can be extended with further board elements, but also with mini-goals, basketball rings or volleyball equipment.

The complete construction is made from aluminium.

Order No SP115005 Dimension on request
Order No SP115000 Dimension 30 x 10 m.
Order No SP115010 Dimension 20 x 10 m.
Order No SP115020 Dimension 18 x 10 m.
Order No SP115030 Dimension 15 x 10 m.
Other dimensions on request
