Fully automatic paver for elastic layers, elastic subbases, athletic tracks and multipurpose sports surfaces.
Working width up to 2.700 mm (variable), area performance up to 730 m²/h.

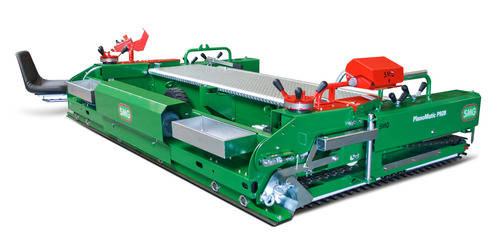

The PlanoMatic P928 is a fully automatic paver. With continuously variable speeds of 0.8 – 4.5 m/min it provides a theoretical performance of up to 730 m²/h. Individually adjustable width of up to 2.700 mm makes it ideal for athletic running tracks and school sports facilities.
P928 is equipped with an automatic curve control for running tracks and a hydraulic controlled undercarriage. P928 can come with an optional automatic levelling device (sensor/tactile unit) for smooth installation.
Paving thickness settings of 6 – 50 mm can be easily changed by pressing a button located on both sides of the control panel. Manual work on seams therefore becomes almost superfluous. The 153 mm-wide track chassis can be fitted for optimum traction on unbound subbases with special chains. As an additional option P928 can be featured with a suitable generator. The generator mounted on a swivelling console is safely protected and securely fixed to the machine.
| Power | 6,5 kW / 3 ph. / 400 V / 50 – 60 Hz / 12 A |
| Traction drive | 2 infinitely variable A.C. gear motors / speed of forward movement c. 0.8 m/min. to 4.5 m/min. |
| Chain drive | with standard chains 153 x 50 mm with special chains 140 x 15 mm (optional) |
| Installation width | up to 2.700 mm (variable) |
| Area performance | up to 730 m²/h |
| Weight | 950 kg (without optional accessories) |
| Dimensions | L 2.450 x B 3.600 x H 720 mm |
